Packaging Solutions › Sub-Category 06

Weighing &
Filling
Automation Systems

Multi-head weighers, auger fillers, piston/volumetric fillers, net-weight fillers, linear weighers and checkweighers — engineered for powder, granule, liquid, paste, snack and irregular products with ≤ ±0.5% accuracy and recipe-based PLC control.

Get a Custom Quote → ⬇ Download Brochure
30–200/min
Weighings per Minute
0.2%
Best Fill Accuracy (±)
8+
Filler Technologies
PLC Recipe
Multi-SKU Control

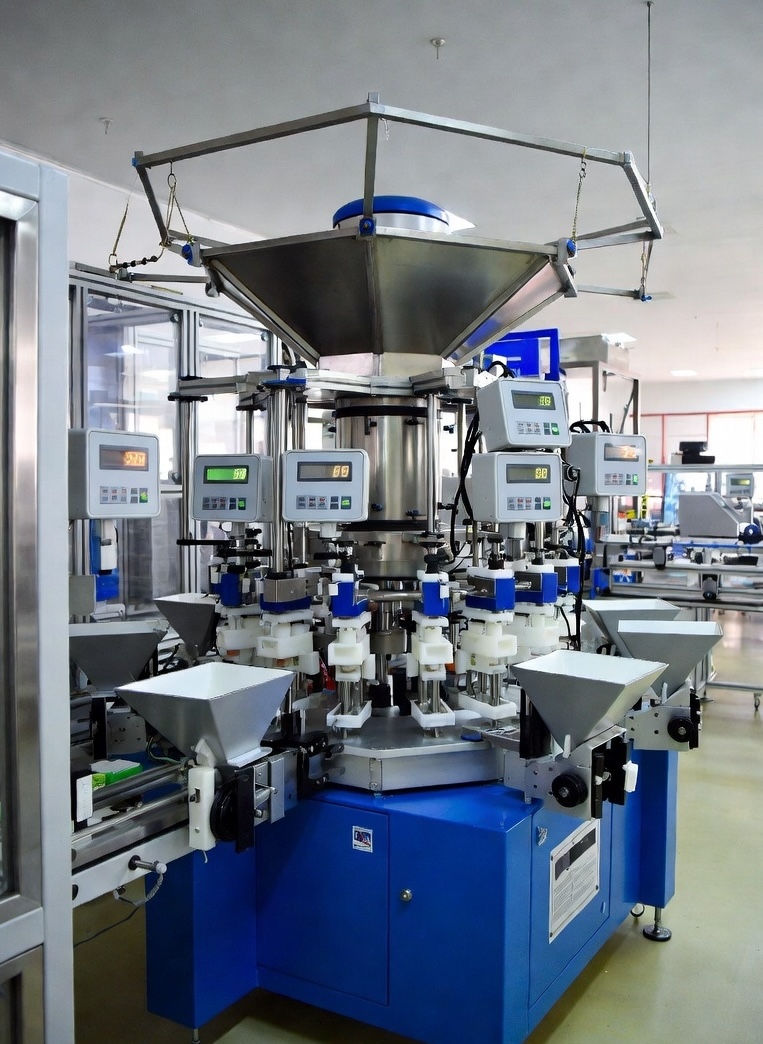

Weighing & Filling System
Weighing & Filling System
Precise · Fast · Trained
⚖️
±0.2% AccuracyMulti-head precision
🏆
OIML R-76Legal-for-trade
🛡️
SS304/316Food & pharma
🚢
CIF DeliveryTo any African port
How It Works

The Weighing & Filling Workflow — Step by Step

From bulk product reception to filled, weighed and quality-verified packs — a fully integrated 6-stage weighing & filling process supporting multi-head, auger, piston, net-weight and checkweighing technologies.

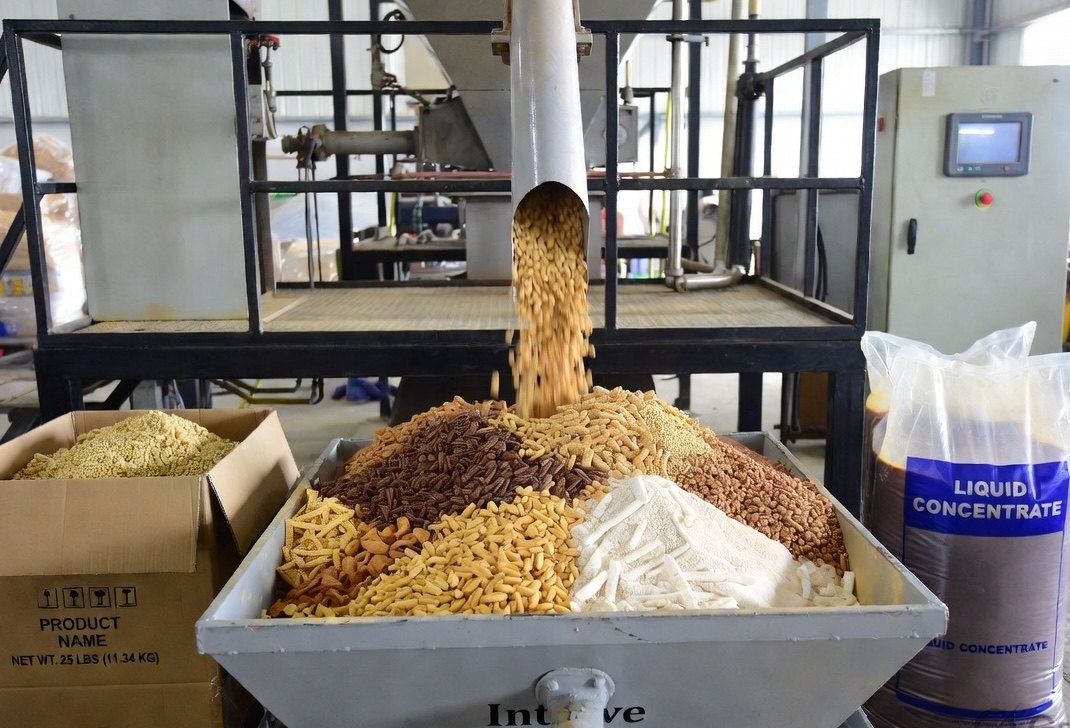

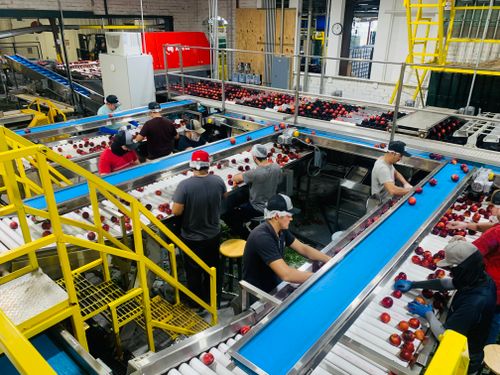

Product Reception
1

Product Reception

Bulk product (snack, granule, powder, liquid) received into intake hopper or surge tank — feed level monitored continuously

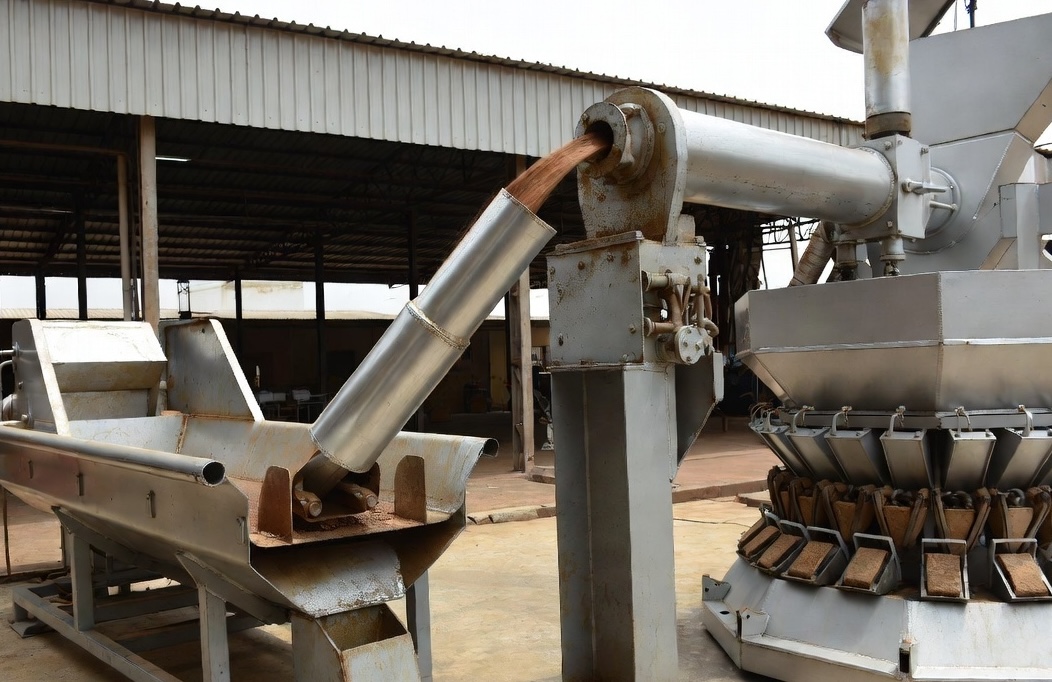

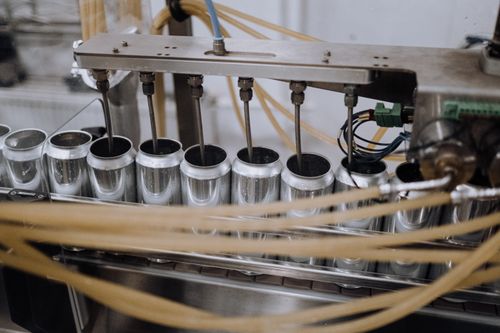

Distribution & Feed
2

Distribution & Feed

Vibrating feeder distributes product to multi-head weigher pool / auger / piston pump — uniform feed rate maintained

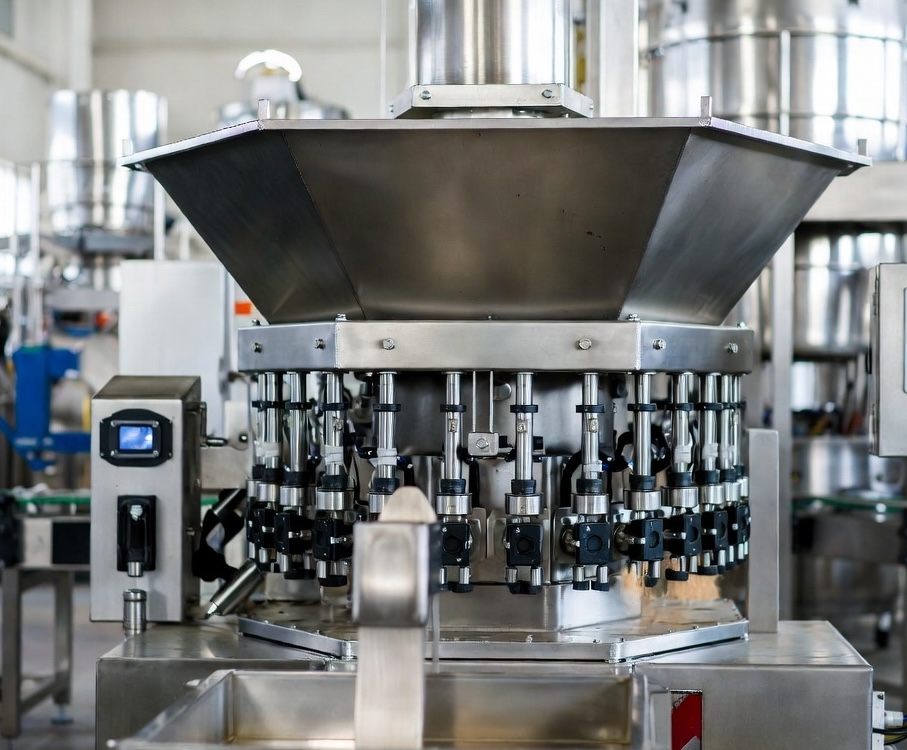

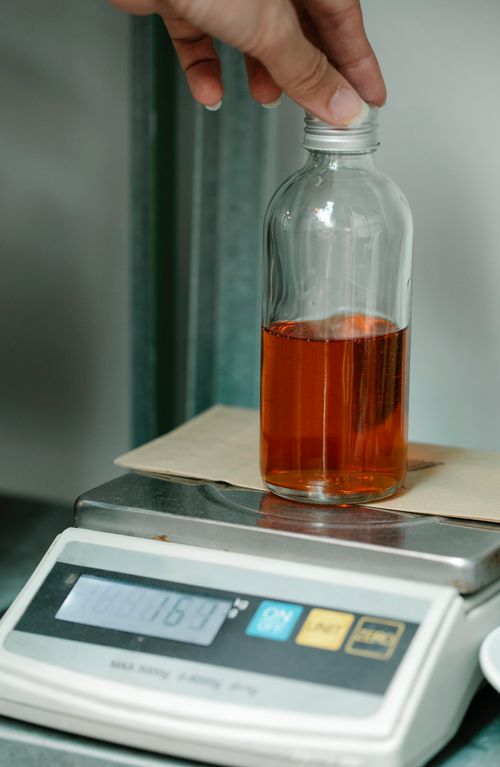

Precision Weighing
3

Precision Weighing

Multi-head weigher selects optimal head combination per cycle (10/14 head); auger / piston measures volumetric or net-weight charge

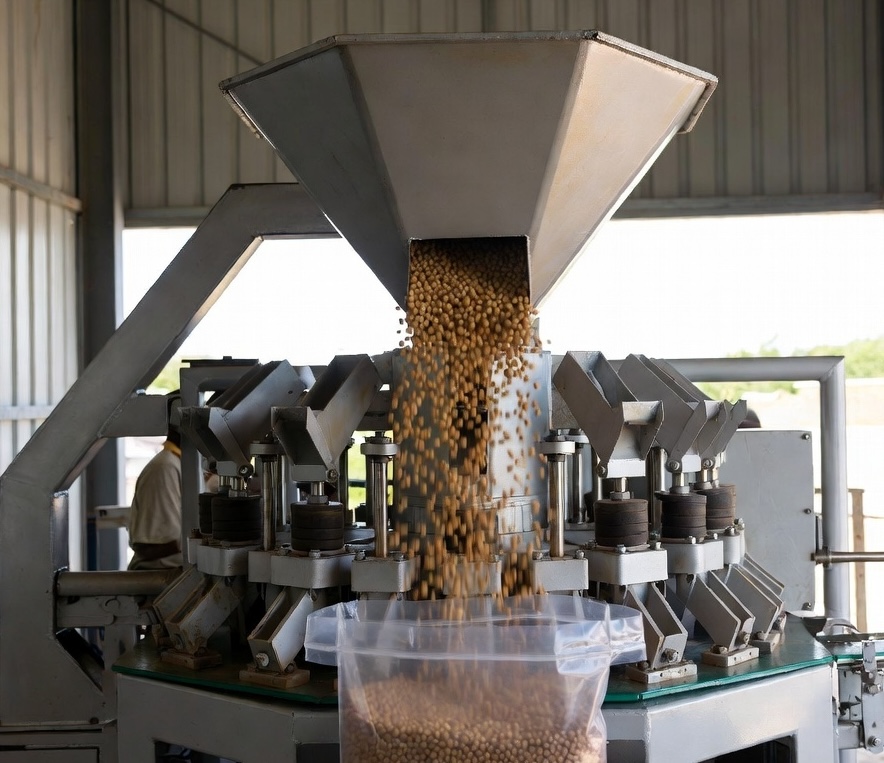

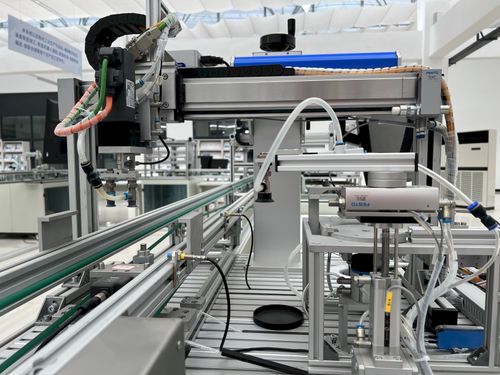

Combination & Discharge
4

Combination & Discharge

PLC algorithm calculates closest-to-target combination & discharges to collator funnel above container or pouch

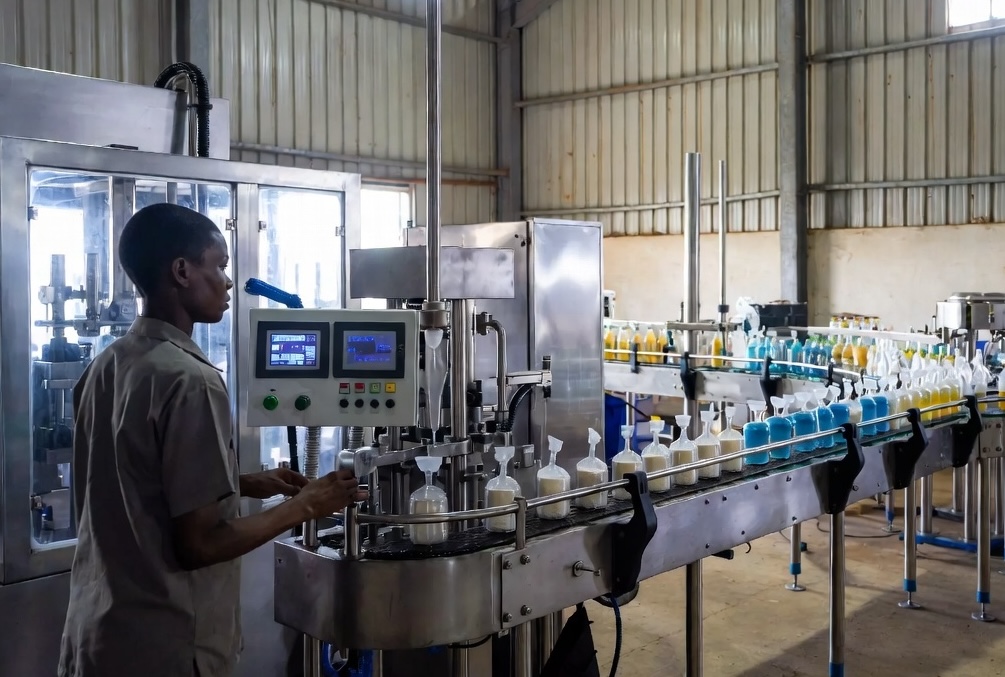

Filling Into Container
5

Filling Into Container

Product drops into pouch (VFFS), bottle, jar, can, tray or cup — synchronised with downstream filler/sealer

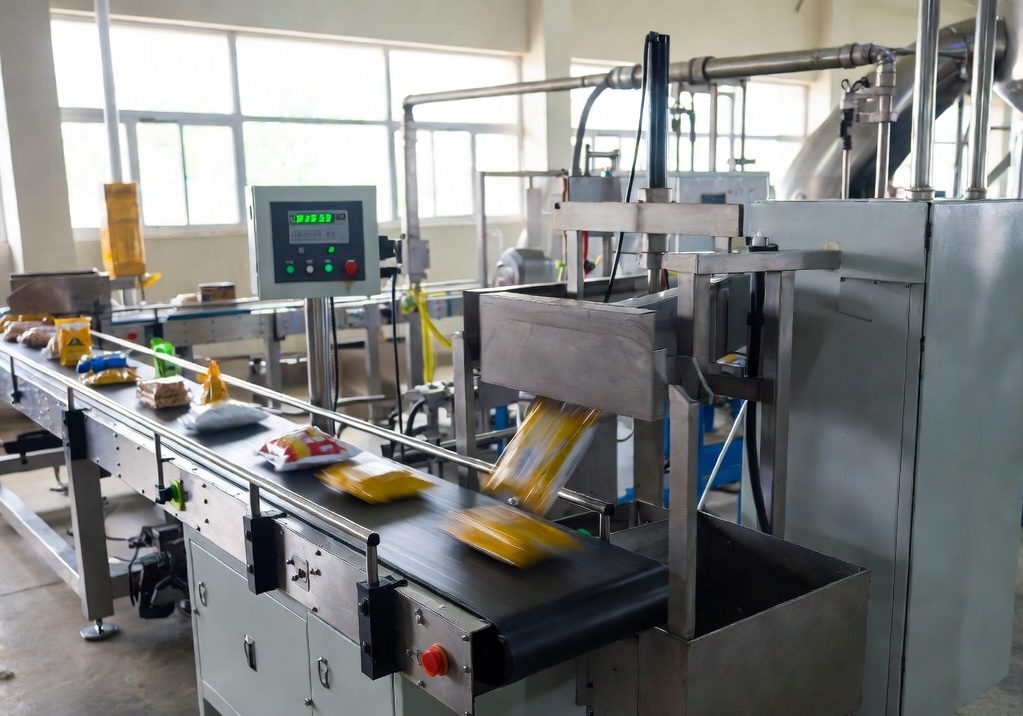

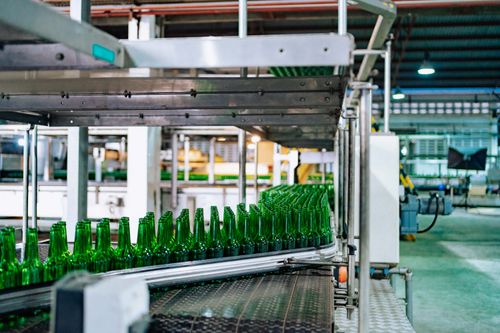

Inline Checkweighing
6

Inline Checkweighing

Each filled container weighed by inline checkweigher; underfill/overfill rejector arm removes off-spec product before sealing

Technical Overview

Specifications & Engineering Details

What's Included in a Vezora Weighing & Filling Solution

Our weighing & filling range covers every product format and accuracy requirement — from 10-head weighers for snacks & chips, augers for spice powder, piston fillers for sauces, to net-weight fillers for 25-kg sacks of flour or feed.

All product-contact parts are food-grade SS304/SS316. Equipment is calibrated, trial-run with your specific product samples and integrated with your existing pouch/bottle/sack filler at our partner facility before shipment.

  • ⚖️Multi-head weigher (10 / 14 / 16 head, ≤ ±0.5%)
  • 🌪️Auger filler for powder & spice (servo / clutch)
  • 💧Piston / pump filler for liquid, sauce, paste
  • 📐Linear / net-weight scale for bag & sack filling
  • 📊Inline checkweigher with reject arm
  • 🌡️Heated jacket / agitator for high-viscosity products
  • ⚡HMI panel with multi-recipe management
  • 🚫No-product / no-fill detection & alarm
⚙️Mechanical Specifications
Speed Range30 – 200 weighings/min
Fill Volume2 g – 25 kg per charge
Best Accuracy≤ ±0.2% (multi-head)
Auger Accuracy≤ ±1.0% (powder)
Piston Accuracy≤ ±0.5% (liquid)
⚡Electrical & Utility Requirements
Power Supply220–415 V / 1Ph or 3Ph / 50 Hz
Connected Load2 – 12 kW (filler dependent)
Compressed Air6 bar (oil-free, food grade)
Air Consumption200 – 600 NL/min
Generator CompatibleYes — fully compatible
🏗️Civil & Infrastructure
Machine Footprint1.0 × 0.6 m (single auger) up to 3.5 × 2.0 m (14-head)
Hopper Capacity30 – 200 L
Operating HeightAdjustable 850 – 1,800 mm (multi-head)
DrawingsIncluded in package
Key Features & African-Market Benefits

Why Vezora Leads African Weighing & Filling Automation

Best-In-Class Accuracy

Multi-head weighers achieve ≤ ±0.2% — minimising product giveaway and saving 1–3% of raw material cost on every pack run vs. linear scales.

Multi-Product Filler Library

Single supplier covers auger (powder), piston (liquid), pump (paste), volumetric (free-flow) and net-weight (sacks) — one accountable partner for every fill type.

Inline Checkweighing

Every filled pack weighed inline; under/over-fill rejector arm removes off-spec product before sealing — eliminating retail-shelf weight complaints.

Recipe-Based Changeover

PLC stores 50+ recipes for product, fill weight, vibration profile and discharge sequence — switch SKUs in 5 minutes vs. hours of mechanical setup.

Hygienic Cleanable Build

SS304/SS316 contact parts, easy-removable hoppers/buckets, IP65 wash-down options — meeting HACCP, FSSC, BRC and pharma cGMP standards.

Local Service & Spares

Wear parts (load cells, auger flights, piston seals, drive belts) standardised & stocked locally through Vezora Spare Parts. AMC ensures planned PMs.

Machine Range & Speeds

Choose the Right Weighing & Filling Configuration

Speed Filler Type Power Required Footprint Best For Tag
30 weighings/minSingle-Head Linear Scale2 kW1.0 × 0.6 mPharma, sample, R&DEntry
60 weighings/minAuger Powder Filler3 kW1.2 × 0.7 mSpice / powder retailStarter
90 weighings/min10-Head Multi-Head6 kW2.5 × 1.6 mSnack / chips brandsPopular
130 weighings/min14-Head Multi-Head8 kW3.0 × 1.8 mIndustrial snack / coffeePopular
180 weighings/minHigh-Speed 16-Head10 kW3.5 × 2.0 mMega snack & cerealIndustrial
200+ weighings/minCombo Weigh + Fill Cell12 kW3.5 × 2.2 m+National brands & exportEnterprise

* Speeds depend on product flowability, target weight, head count and discharge synchronisation with downstream pouch/bottle filler. Net-weight bag fillers run at lower BPM but handle 25–50 kg charges.

Filling Technologies Your Line Can Run

A Vezora weighing & filling cell can run multiple filler technologies — choose the right tech for each product and build a flexible multi-SKU production line.

Multi-Head Weigher

10 / 14 / 16-head weigher for granule, snack & irregular product — best accuracy.

±0.2%Granule / Snack
Auger Filler

Servo-driven auger for free-flowing & non-flowing powder & spice.

±1.0%Powder / Spice
Piston Filler

Sanitary piston for liquid, sauce, paste, cream & semi-viscous products.

±0.5%Liquid / Paste
Net-Weight Filler

Linear scale + clamp for 5 / 10 / 25 / 50 kg bag & sack filling.

±0.3%Bag / Sack
Checkweigher

Inline weight verification & rejector — every pack 100% weighed.

VerifyReject Off-Spec
Applications & Industries

Who Uses Our Weighing & Filling Systems?

From cottage spice fillers to mega multi-head snack lines and 50-kg flour baggers — our weighing & filling range serves every segment of African food, beverage and consumer-goods packaging.

🥨
Snack & Chips Industry 10-head and 14-head multi-head weighers for potato chips, plantain crisps, cassava chips, banana chips and biscuit packing — top accuracy with minimum giveaway.
🌶️
Spice & Seasoning Servo-augered powder fillers for chilli, turmeric, masala blends and seasonings into pouches, sachets, jars and stand-up packs.
🥛
Dairy & Liquid Foods Sanitary piston fillers for yogurt, milk, cream, sauces and ketchup — CIP-cleanable for cGMP-grade hygiene.
🌾
Flour, Sugar & Feed Net-weight fillers for 25 kg / 50 kg sacks of flour, sugar, animal feed, fertiliser and grain — automatic clamp, fill, weigh & release.
☕
Coffee, Tea & Powder Beverages Auger filler + multi-head combination for whole-bean, ground coffee, instant coffee, tea, milk powder and beverage premix.
🐔
Pet Food & Animal Snacks Multi-head weighers for kibble, treats, fish flakes & cat litter — gentle bucket discharge protects fragile snack products.

Why Choose Vezora

50+ ProjectsDelivered across Africa
48-Hour QuoteDetailed proposals fast
Local SparesAfrica office in Lusaka
AMC AvailablePlanned PMs & uptime

Standards & Certifications

ISO 9001:2015Quality Management System
CE MarkedEU safety compliance
OIML R-76Legal-for-trade weighing
HACCP / cGMPFood & pharma ready

Typical Project Timeline

Quote & Proposal2–3 Days
Manufacturing & Trial6–10 Weeks
Shipping to Africa3–5 Weeks
Installation & Training1–2 Weeks
Total: Ready to Run3–5 Months
Request a Quote

Get a Free, Detailed Weighing & Filling Proposal Within 48 Hours

Tell us your product, target fill weight, target speed and country — our packaging engineering team will prepare a full techno-commercial proposal including filler selection, accuracy class and CIF pricing.

  • ✅No obligation, no cost — just a detailed proposal
  • ⚡Response within 48 hours, weekdays and weekends
  • 🌍Adapted to your country & product type
  • 🔧Includes installation, commissioning & operator training
  • 💰CIF pricing to your nearest port — no hidden costs
📞 +91 78695 10053 (India — WhatsApp) 📞 +91 95886 90930 (India — WhatsApp) ✉ vishakha@vezorainternational.com ✉ kush@vezorainternational.com

Weighing & Filling Enquiry Form

Fill in your details and we'll get back to you within 48 hours with a full proposal.

⬇ Download Brochure

🔒 Your information is confidential. We will never share your details with third parties.

Explore More

Other Packaging Solutions

Automatic Pouch Filling MachinesExplore →
High-Speed Bottling LinesExplore →
End-of-Line PackagingExplore →
All Packaging Solutions →View full category
Countries We Serve
🇿🇲Zambia 🇰🇪Kenya 🇳🇬Nigeria 🇬🇭Ghana 🇹🇿Tanzania 🇺🇬Uganda 🇪🇹Ethiopia 🇿🇼Zimbabwe 🇲🇿Mozambique 🇿🇦South Africa 🇨🇩DR Congo 🇦🇴Angola 🇧🇼Botswana 🇳🇦Namibia 🇷🇼Rwanda 🇨🇮Côte d'Ivoire 🇸🇳Senegal 🇨🇲Cameroon 🇸🇩Sudan 🇸🇸South Sudan 🇲🇼Malawi 🇧🇮Burundi 🇸🇴Somalia 🇪🇬Egypt 🇱🇾Libya 🇹🇳Tunisia 🇩🇿Algeria 🇲🇦Morocco 🇬🇦Gabon 🇨🇬Congo 🇨🇫CAR 🇹🇩Chad 🇲🇱Mali 🇳🇪Niger 🇧🇫Burkina Faso 🇬🇳Guinea 🇸🇱Sierra Leone 🇱🇷Liberia 🇹🇬Togo 🇧🇯Benin 🇩🇯Djibouti 🇪🇷Eritrea 🇬🇶Eq. Guinea 🇸🇿Eswatini 🇱🇸Lesotho 🇬🇲Gambia 🇬🇼Guinea-Bissau 🇲🇷Mauritania 🇲🇬Madagascar 🇰🇲Comoros 🇸🇨Seychelles 🇲🇺Mauritius 🇨🇻Cape Verde 🇸🇹São Tomé 🌍Middle East 🇦🇪UAE 🇸🇦Saudi Arabia 🇶🇦Qatar 🇰🇼Kuwait 🇴🇲Oman 🇧🇭Bahrain 🇮🇶Iraq 🇾🇪Yemen 🇯🇴Jordan

Frequently Asked Questions — Weighing & Filling Machines for Africa

Common questions about weighing and filling machine exports to Africa.

What types of weighing and filling machines does Vezora supply?

We supply multihead weighers, net weighers and automatic filling lines for powders, granules and liquids.

Which African countries do you export weighing machines to?

We export weighing and filling machinery to Nigeria, Kenya, Ghana, Tanzania, Zambia and other African markets.

What is a multihead weigher used for?

Multihead weighers accurately weigh and dispense products like grains, snacks and granules at high speed for packaging lines.

Can weighing machines handle both liquids and solids?

Yes. We supply separate weighing and filling systems optimized for liquids, powders and granular products.

Do you provide calibration and training?

Yes. Every weighing and filling machine we export includes installation, calibration and operator training.

How do I request a quote?

Send us your product type and required accuracy/speed via WhatsApp for a detailed quotation.
