Packaging Solutions › Sub-Category 04

Automatic
Labelling
Systems

Automatic labelling systems — wet-glue, pressure-sensitive (PSL), sleeve, hot-melt and print-and-apply labelers — for bottles, cans, jars, pouches and cartons. Engineered for African production lines from 30 to 500 bottles per minute.

Get a Quote → ⬇ Download Brochure
30–500/min
Bottles per Minute
5+
Labeler Types
0.5 mm
Placement Accuracy
Multi-Side
Front/Back/Wrap

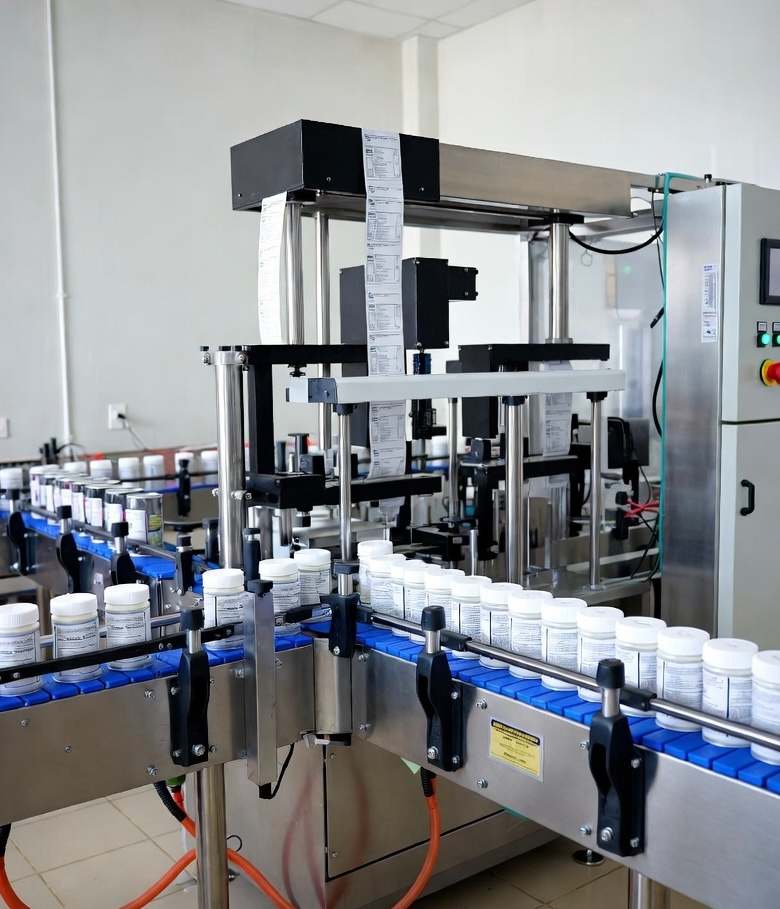

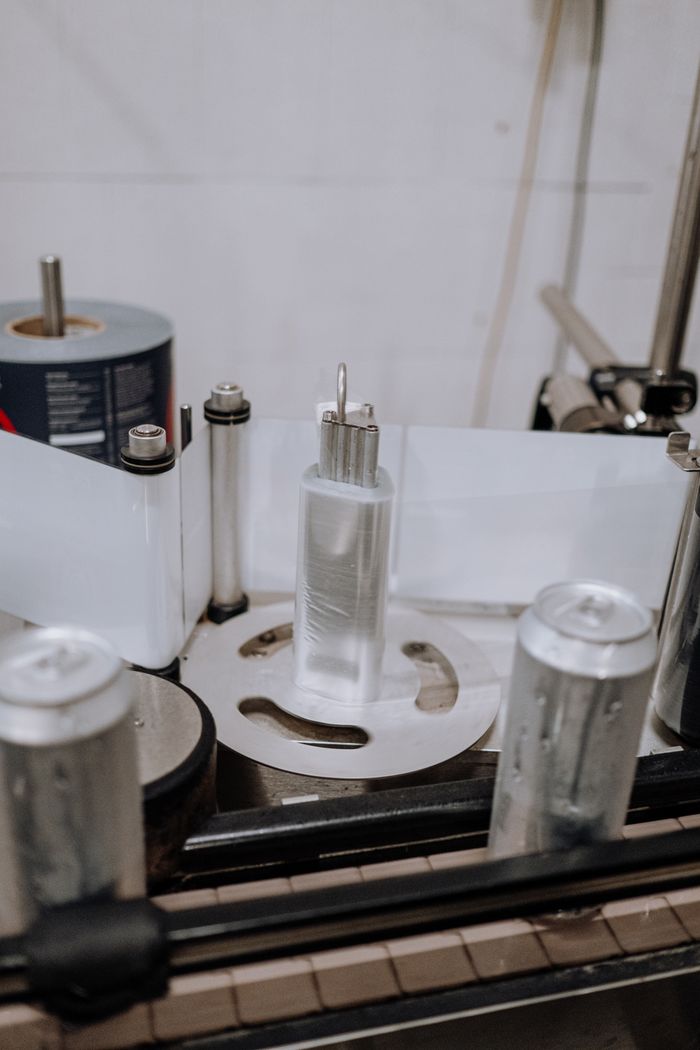

Labelling System
Labelling System
Servo · Hygienic · Trained
⚡
Servo DrivePrecision & speed
🏆
ISO 9001Quality certified
🛡️
SS304/316Food & pharma
🚢
CIF DeliveryTo any African port
How It Works

The Workflow — Step by Step

From container infeed to fully labelled, coded and quality-inspected bottles — a fully integrated 6-stage labelling process supporting wet-glue, PSL, sleeve and hot-melt formats.

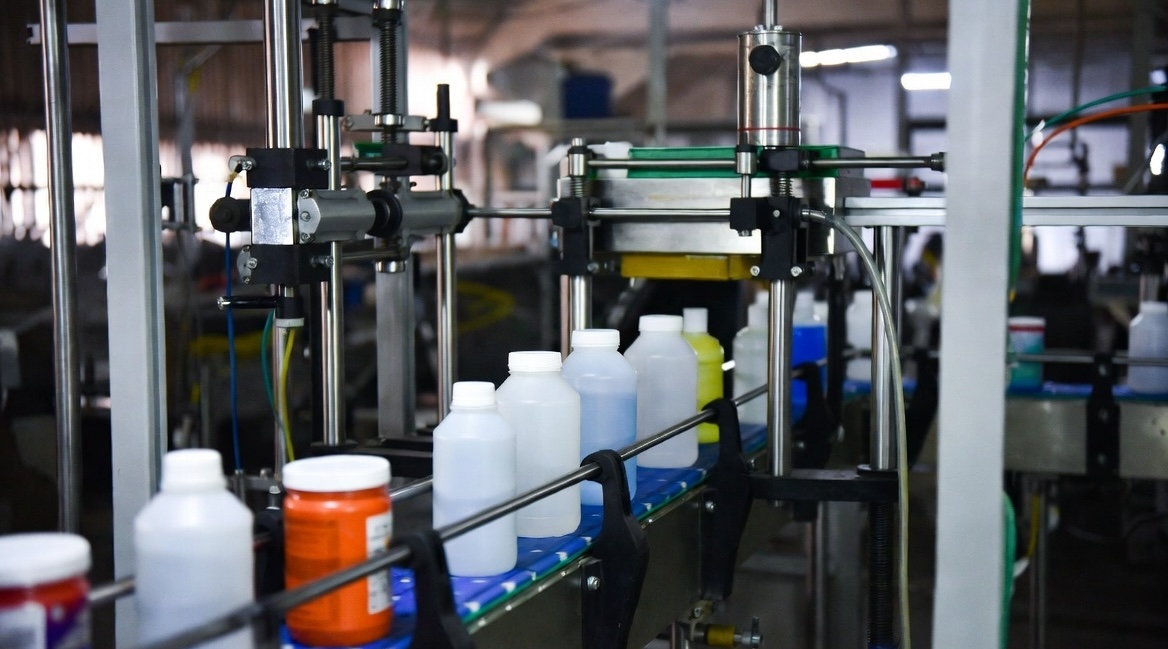

Container Infeed
1

Container Infeed

Bottles, jars or cans arrive on conveyor, separated by timing screw or guide rail to controlled pitch

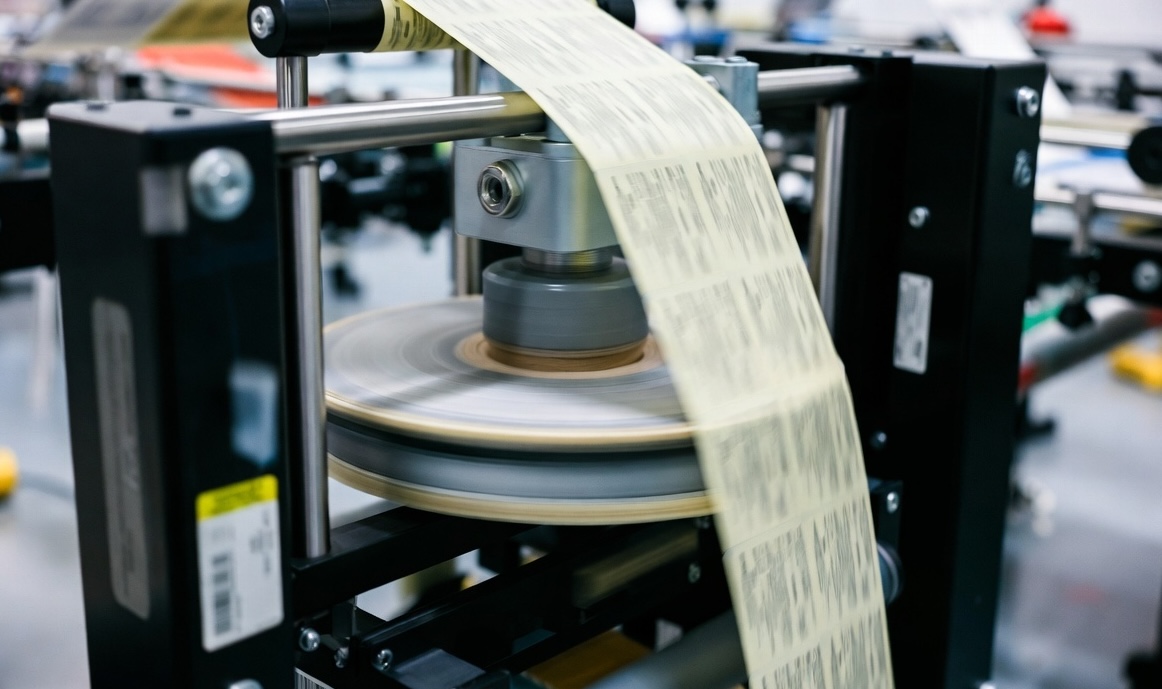

Label Pick-Up
2

Label Pick-Up

PSL: vacuum drum picks label from web. Wet-glue: rotating disc applies cold/hot glue to back of paper label. Sleeve: shrink film fed from roll over container

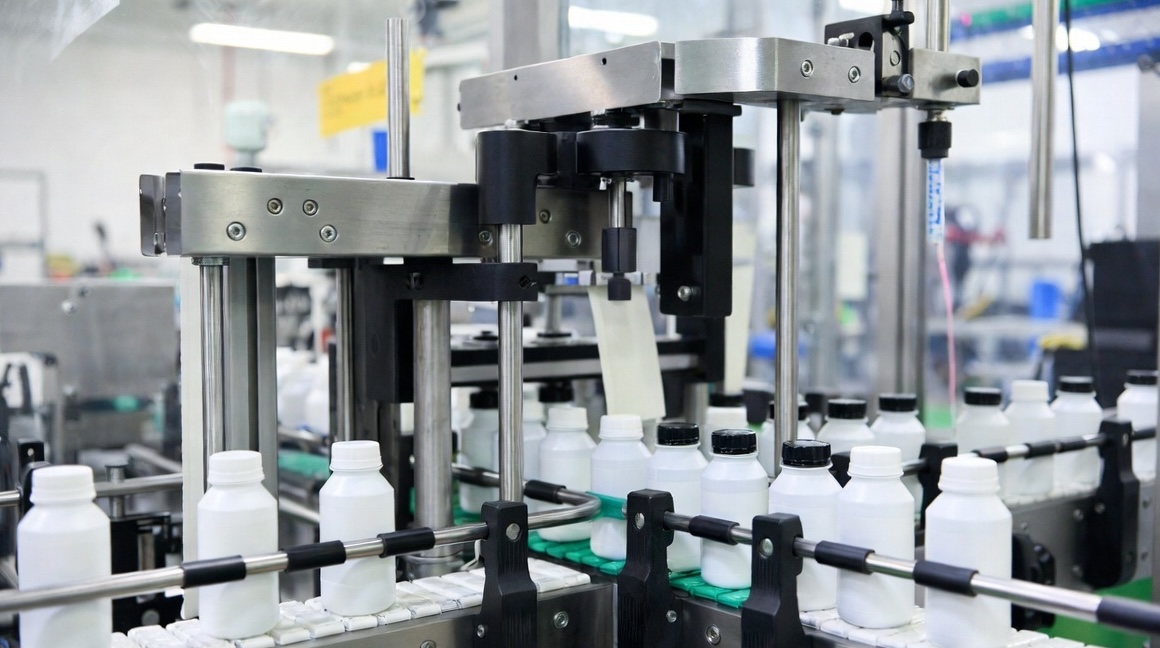

Label Application
3

Label Application

Sponge belt, vacuum drum or shrink-tunnel applies label to container — single side, double side, wrap-around or full sleeve

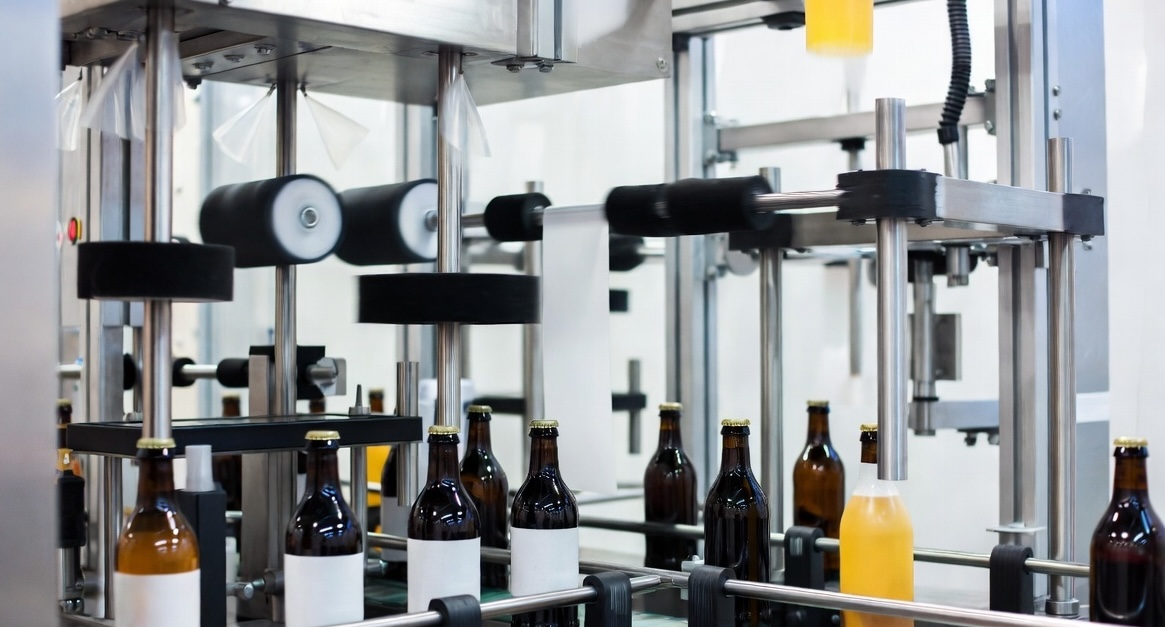

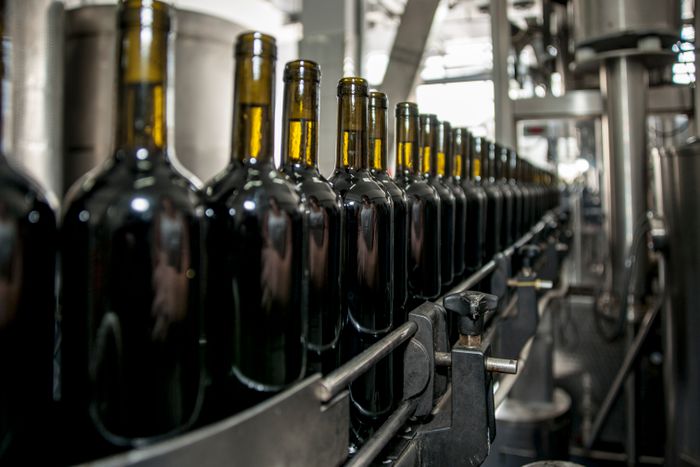

Smoothing & Brushing
4

Smoothing & Brushing

Brushes, sponges or air blasts smooth label, eliminating bubbles, wrinkles and lift-off — heat-shrink tunnel for sleeve labels

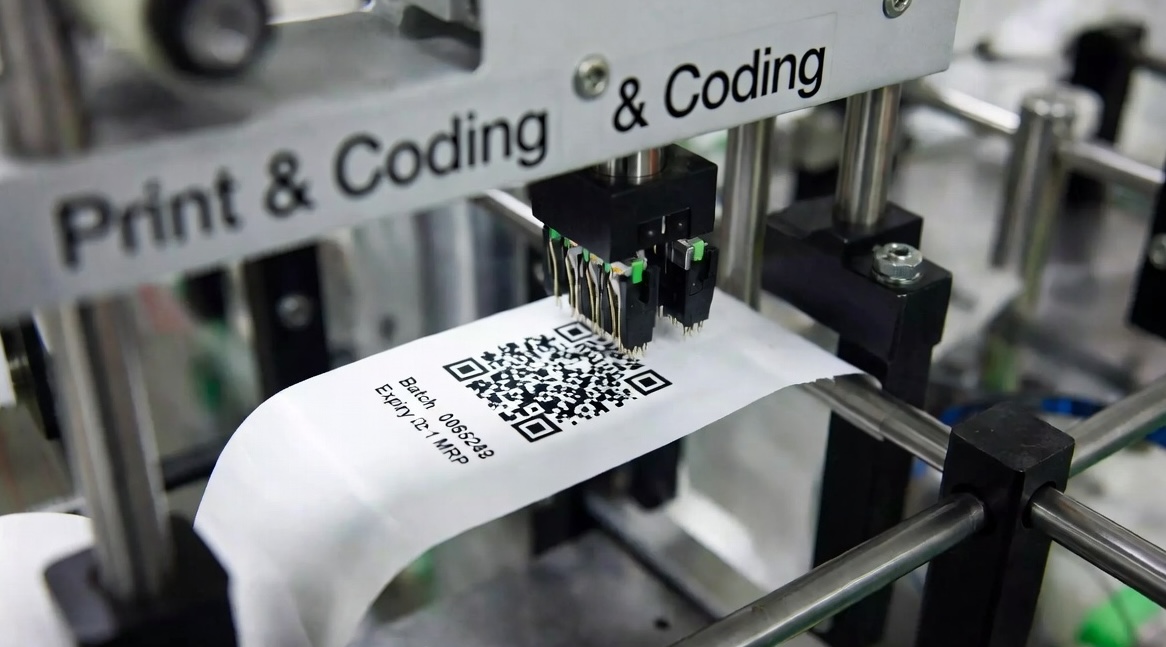

Print & Coding
5

Print & Coding

Inline ink-jet, thermal-transfer or laser coder prints batch, date, MRP, QR code or barcode on label or container

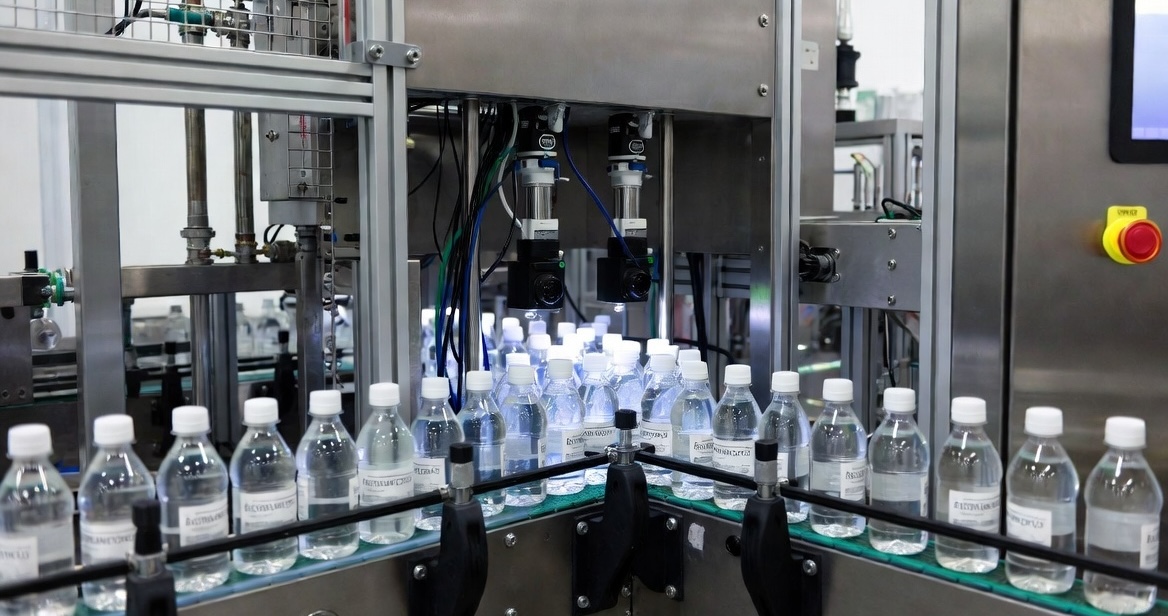

Inspection & Discharge
6

Inspection & Discharge

Vision system verifies label presence, position, code legibility — rejector removes faulty containers; passed product to wrap/case-pack

Technical Overview

Specifications & Engineering Details

What's Included in a Vezora Labelling System

Our labelling range covers wet-glue (cold or hot melt), pressure-sensitive (PSL self-adhesive), sleeve (shrink-film), hot-melt OPP and print-and-apply systems — for round, oval, square and irregular containers from 50 ml ampoules to 20 L jerrycans.

All labelers feature servo-driven web control, vacuum drums and electronic registration. Equipment is pre-assembled and trial-run with your label, container and adhesive samples at our partner facility before shipment.

  • 📥Bottle infeed conveyor with timing screw
  • 🏷️Label dispenser — wet-glue / PSL / sleeve / hot-melt
  • 🎯Servo web control + vacuum drum applicator
  • 🌬️Sponge / brush / air smoothing station
  • 🔥Shrink tunnel (sleeve labelers, optional)
  • 🖨️Ink-jet / TTO / laser coder integration
  • ✅Vision inspection (label + code)
  • ⚡HMI panel with recipe management
⚙️Mechanical Specifications
Speed Range30 – 500 bottles/min
Container Diameter20 – 200 mm
Container Height30 – 350 mm
Label Length20 – 350 mm
Placement Accuracy≤ ±0.5 mm
⚡Electrical & Utility Requirements
Power Supply220–415 V / 1Ph or 3Ph / 50 Hz
Connected Load2 – 18 kW (line dependent)
Compressed Air6 bar (oil-free)
Air Consumption100 – 300 NL/min
Generator CompatibleYes — fully compatible
🏗️Civil & Infrastructure
Machine Footprint1.5 × 0.8 m (compact) up to 3.5 × 1.4 m (full wrap)
Operating HeightAdjustable 850 – 950 mm
Label Roll HolderUp to 400 mm OD
DrawingsIncluded in package
Key Features & African-Market Benefits

Why Vezora Leads the African Packaging Market

Multi-Label Compatibility

One platform supports wet-glue, PSL, sleeve and hot-melt labels — switching label type within minutes by changing the applicator module.

Servo Web Control

Servo-driven web feed with electronic registration eyemark sensor — keeps label position consistent at high speeds, eliminating misalignment.

Multi-Container Capable

Round, oval, square and irregular containers — bottles, jars, cans, pouches and cartons — quick changeover with adjustable centring guides.

Sleeve Shrink Tunnel

Optional steam or hot-air shrink tunnel for full-body shrink sleeves — premium 360° branding for retail shelf impact.

Inline Coding Integration

Ready integration with ink-jet, thermal-transfer and laser coders — print batch, date, MRP, QR or barcode on label or container.

Tool-Less Changeover

Tool-less change of star wheels, label rollers and applicator heads — switch SKUs in 10–15 minutes with PLC recipe recall.

Machine Range & Speeds

Choose the Right Configuration

Speed Machine Type Power Required Footprint Best For Tag
30 bottles/minSemi-Auto Tabletop1.5 kW1.2 × 0.6 mCottage / R&D / pharmaEntry
60 bottles/minAuto Single-Side3 kW1.5 × 0.9 mSmall commercial brandsStarter
120 bottles/minAuto Front+Back6 kW2.0 × 1.0 mRegional water / juicePopular
240 bottles/minAuto Wrap-Around9 kW2.5 × 1.2 mNational brands & CSDsPopular
400 bottles/minSleeve Shrink Line14 kW3.0 × 1.4 mPremium beverage & oilIndustrial
500+ bottles/minMega Multi-Label18 kW3.5 × 1.4 mMega brands & exportEnterprise

* Speeds depend on container size, label type and number of label sides. Sleeve labelers run slower than wet-glue or PSL.

Label Types Your System Can Apply

A single Vezora labelling system can apply multiple label types with quick-change tooling — capturing every retail format from pharma vials to industrial drums.

Wet-Glue Paper

Cold or hot-melt glue paper labels — for water, beer, juice, spirits — economical and recyclable.

Wet-GluePaper
PSL Self-Adhesive

Pressure-sensitive labels on PET, BOPP or paper substrates — premium retail finish, no glue mess.

PSLSelf-Adhesive
Shrink Sleeve

Full-body 360° shrink film sleeve — premium branding for beverage, oil & cosmetics.

SleeveShrink Film
Hot-Melt OPP

Hot-melt OPP wrap-around label for beverage bottles — clean look, low cost, high speed.

Hot-MeltOPP Wrap
Print & Apply

Print-on-demand label — variable data, batch & serial codes printed and applied inline.

VariablePrint-Apply
Applications & Industries

Who Uses Our Labelling Systems?

From cottage pharma labelers to mega beverage sleeve lines — our labelling range serves every segment of the African packaging industry.

💧
Water & Beverage Wet-glue, PSL and shrink-sleeve labelers for bottled water, juice, RTD tea and energy drinks — premium retail-shelf finish.
🛢️
Edible Oil Industry Front + back PSL labelers for sunflower, soya, palm oil PET bottles and 20 L jerrycans — durable label adhesion under temperature variation.
💊
Pharma & Nutraceutical Tamper-evident PSL labels with batch, expiry, serial codes for pharma vials, syrups, blister packs — cGMP-compliant traceability.
🥛
Dairy & Yogurt Top-foil and wrap labels for yogurt cups, milk bottles & probiotic drinks — hygienic stainless-steel build.
🧴
Personal Care PSL and shrink-sleeve labels for shampoo, lotion, perfume and cosmetic bottles — premium 360° branding.
🧼
Detergent & Chemicals Wrap-around and PSL labels for detergent, lubricant and chemical bottles — chemical-resistant adhesive options.

Why Choose Vezora

50+ ProjectsDelivered across Africa
48-Hour QuoteDetailed proposals fast
Local SparesAfrica office in Lusaka
AMC AvailablePlanned PMs & uptime

Standards & Certifications

ISO 9001:2015Quality Management System
CE MarkedEU safety compliance
HACCP ReadyFood & beverage safe
cGMP ReadyPharma options

Typical Project Timeline

Quote & Proposal2–3 Days
Manufacturing & Trial6–12 Weeks
Shipping to Africa3–5 Weeks
Installation & Training1–3 Weeks
Total: Ready to Run3–5 Months
Request a Quote

Get a Free, Detailed Labelling System Proposal Within 48 Hours

Tell us your container, label type and target speed — our engineering team will prepare a full techno-commercial proposal including labeler selection, coder integration and CIF pricing.

  • ✅No obligation, no cost — just a detailed proposal
  • ⚡Response within 48 hours, weekdays and weekends
  • 🌍Adapted to your country & product type
  • 🔧Includes installation, commissioning & operator training
  • 💰CIF pricing to your nearest port — no hidden costs
